Workflows

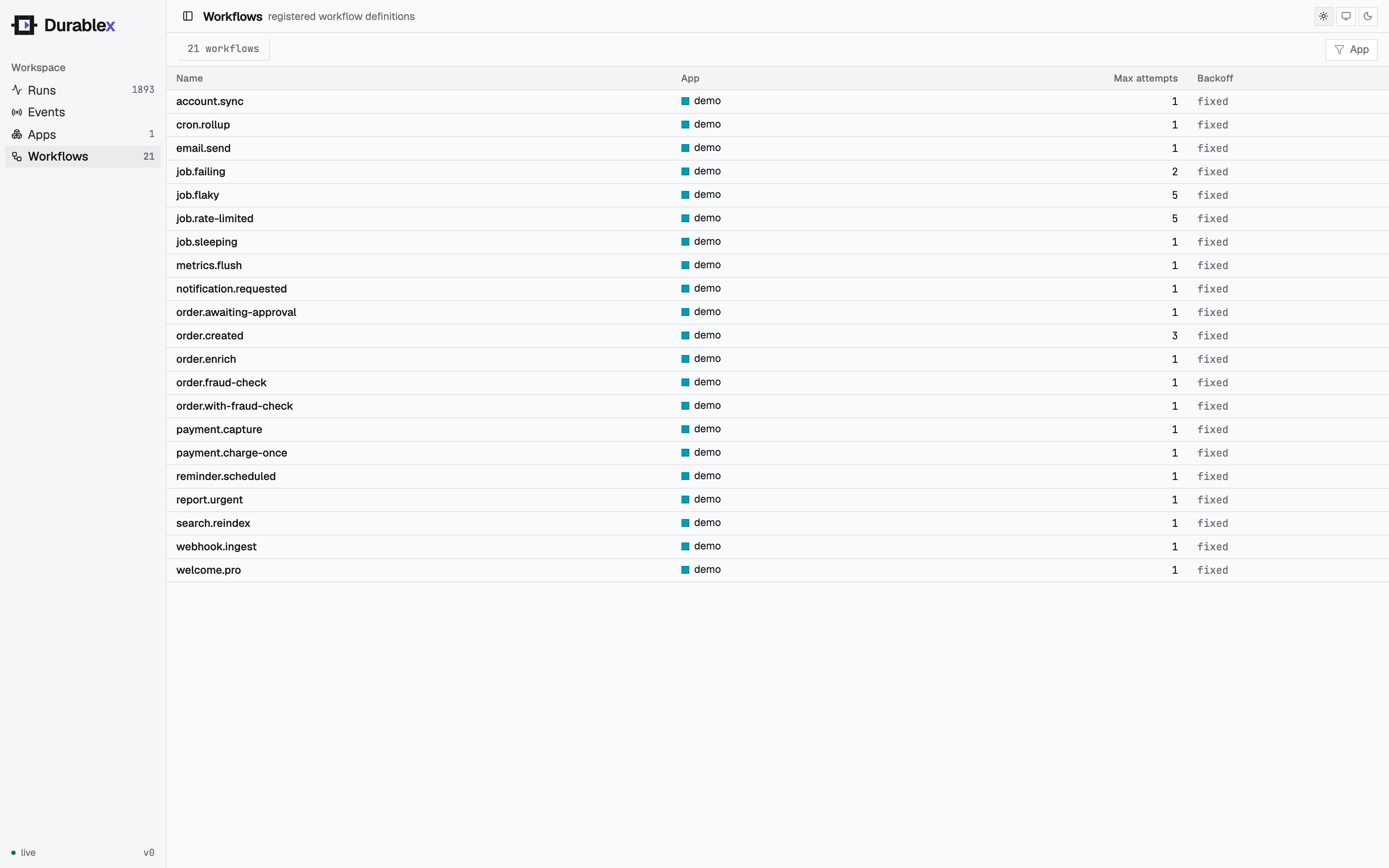

A workflow is a durable function triggered by an event. You define it with defineWorkflow, then serve and register it so the engine can drive it. The console lists every workflow an app has registered:

Select a workflow to open its detail drawer: the definition (app, schedule and next fire, retry policy), live stats tiles, and runs-over-time and latency charts - all scoped to that one workflow and filterable by time range - plus a table of just its runs. The charts and stats reuse the same data as the console's Overview, narrowed with a ?workflow= filter on GET /runs, GET /runs/stats, and GET /runs/timeseries. Selecting a run jumps to the Runs view with that run open.

Defining a workflow

import { defineWorkflow } from "@durablex/sdk";

interface OrderData {
  orderId: string;
}

const orderCreated = defineWorkflow<OrderData>({
  name: "order.created",
  retry: { maxAttempts: 3 },
  handler: async (ctx) => {
    const charge = await ctx.step.run("charge", () => chargeCard(ctx.event.data));
    return charge;
  },
});

• name identifies the workflow. With no triggers, an event of the same name starts it; declare triggers to start it from other events (with filters/wildcards) or a cron schedule.
• retry sets how steps retry on failure. Optional; see Retries.
• handler is your workflow body. It receives a context (ctx) and uses ctx.step to do durable work.

The type parameter (<OrderData>) types ctx.event.data, so your event payload is checked.

The handler context

Serving and registering

Group your workflows into an app - a named set of workflows that run together in one process. serve() turns them into an HTTP handler the engine calls; register() announces the app to the engine on startup.

import { register, serve } from "@durablex/sdk";

const invoke = serve({ workflows: [orderCreated] });

Bun.serve({
  port: 6773,
  fetch(req) {
    const url = new URL(req.url);
    if (req.method === "POST" && url.pathname === "/invoke") {
      return invoke(req);
    }
    return new Response("durablex runner");
  },
});

await register({
  engineUrl: process.env.DURABLEX_ENGINE_URL!,
  app: "order-app",
  url: "http://localhost:6773/invoke",
  workflows: [orderCreated],
});

register() is idempotent - it's safe to call on every startup.

Triggering a run

Send an event whose name matches a workflow. The engine creates a run and drives it to completion.

curl -X POST $DURABLEX_ENGINE_URL/events \
  -d '{"name":"order.created","app":"order-app","data":{"orderId":"A1"}}'

The response includes a run id you can use to inspect the run at GET /runs/{id} and its steps at GET /runs/{id}/steps.
